Ultrasonic material thickness gauge PCE-TG 300-NO5-ICA

€1,037.31

In-stock
Description

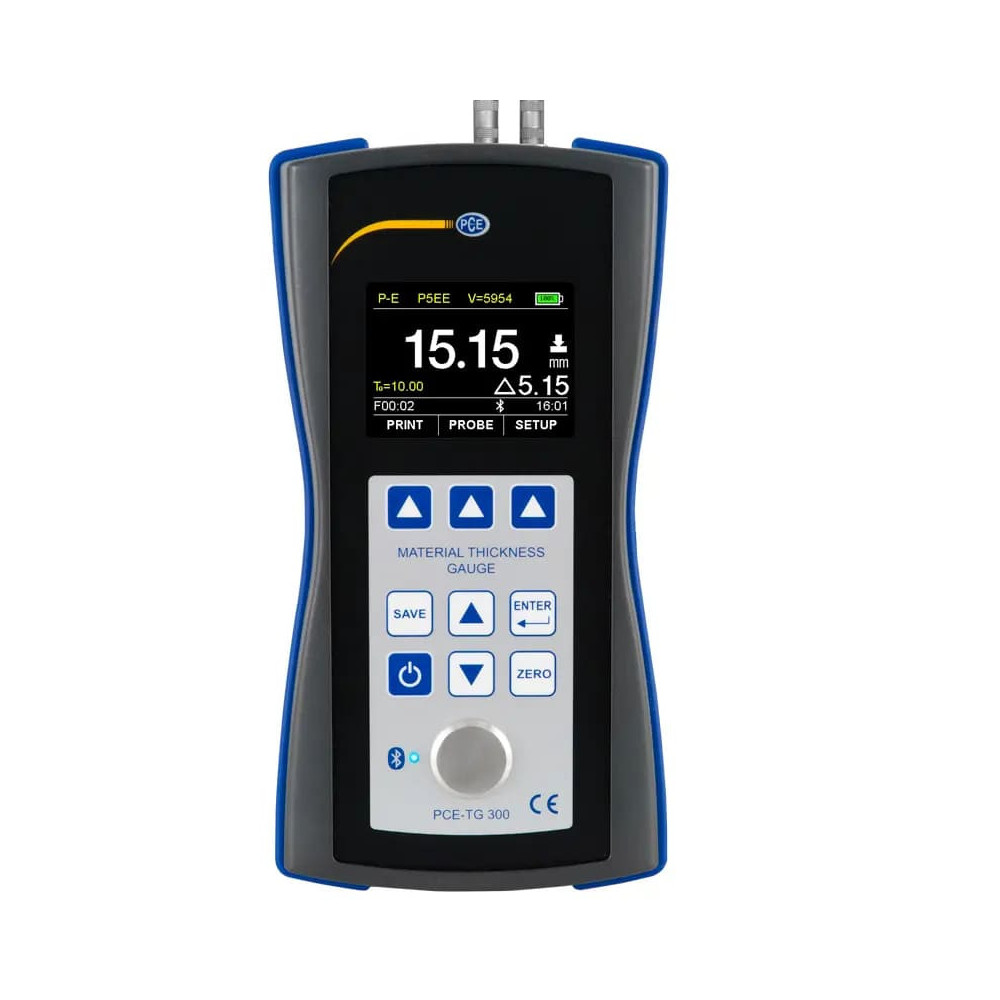

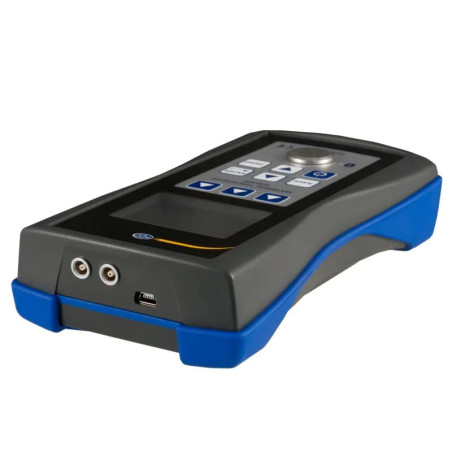

Our PCE-TG 300-NO5-ICA ultrasonic material thickness gauge is an advanced and versatile solution for thickness measurements across a wide range of materials. With an extensive measurement range of up to 600 mm, this instrument is ideal for various homogeneous materials.

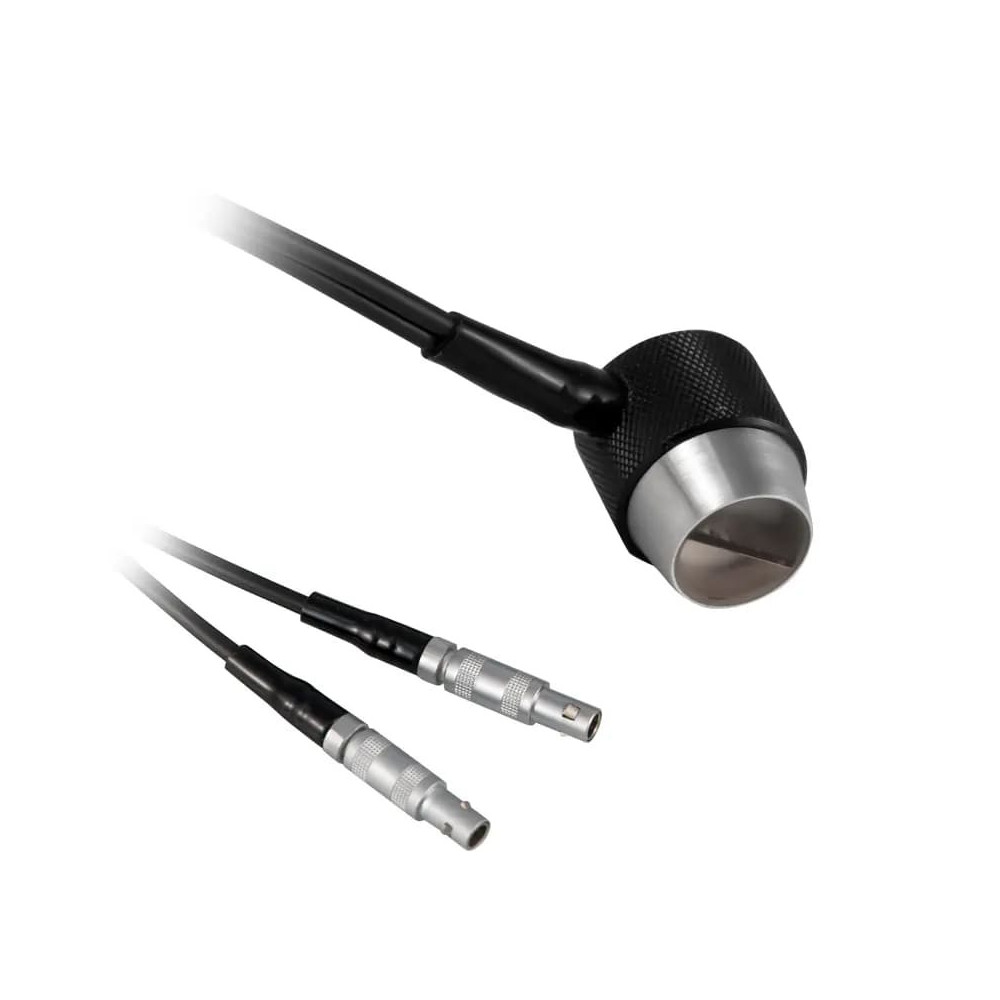

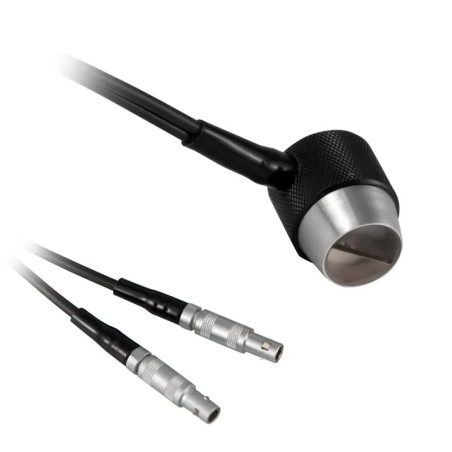

What sets the PCE-TG 300-NO5-ICA apart is its flexibility in using special probes designed to cover a range of measurement ranges. This allows for precise thickness measurements on any type of homogeneous material, including materials with damping or dispersion properties, such as plastic or cast iron. Additionally, thanks to a sensor with a 90° angle, measurements in hard-to-reach areas are possible.

The device also offers the freedom to adjust ultrasound velocity, ensuring accurate measurements regardless of the material you're working on.

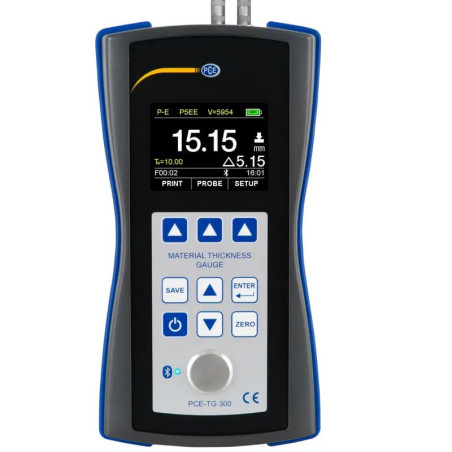

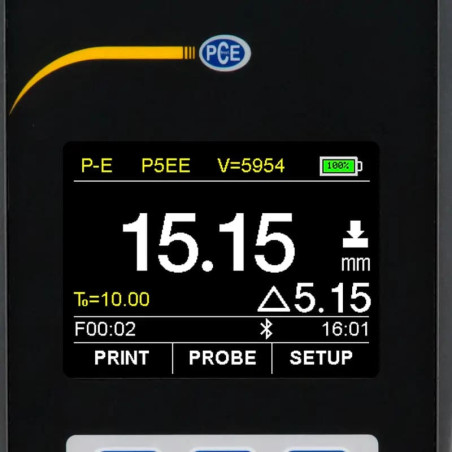

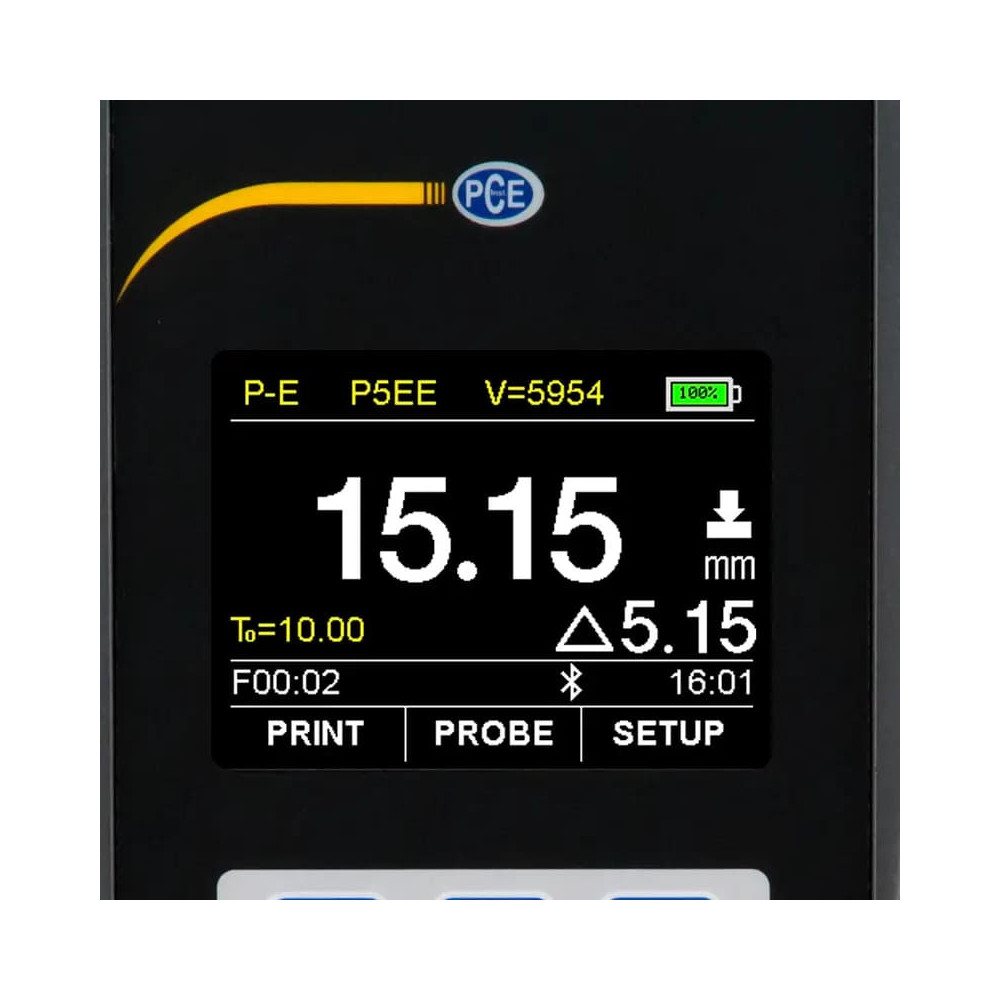

Data reading is made easy with the TFT color screen, while the internal memory allows you to store values from different measuring points. Our thickness gauge uses a non-destructive ultrasonic measurement method, meaning it can be used on end products without causing damage. The double-echo mode even allows measurements through coated parts, making it even more versatile.

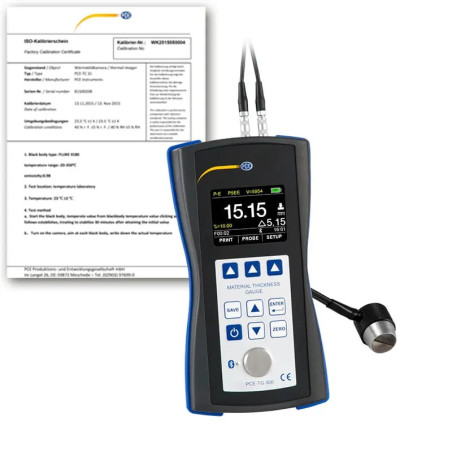

Furthermore, we provide an ISO calibration report that includes calibration points at 5, 10, 20, 50, and 100 mm to ensure measurement accuracy.

Our thickness gauge is battery-powered and equipped with error and void detection, ensuring reliable results. We also offer the option to print data via Bluetooth (optional), making data management even more convenient. With various sensors available and a range of advanced features, our PCE-TG 300-NO5-ICA thickness gauge is the ideal choice for advanced and precise measurement applications.

20 Items
PCE
4250348731197
Resolution
0.1mm / 0.01mm / 0.001mm (adjustable)
Battery life
Continuous operation 100 hours
Dimensions
185mm x 97mm x 40mm
Diameter Ø10 mm
Weight
375g
Range
1 ... 600 mm (steel)
E-E: Double eco mode 2.50 ... 100 mm
P-E: Pulse-echo mode 0.65 ... 600 mm (steel)
Calibration
Ultrasonic calibration, zero calibration, two-point calibration
Power
4 x 1.5V AA batteries
Measurements Units
mm / inch
Memory
Non-volatile for 100 data sets with 100 records each
Material
Measurable: Metals, plastic, ceramic, epoxy resin, glass and any homogeneous material
Measurement method
Double-echo (Echo-echo, hides the thickness of the coating)
Pulse-echo (Pulse-echo, error and void detection)
Precision
H refers to the thickness of the material
±0.04 mm H[mm] (less than 10 mm)
±0.4% H[mm] (greater than 10 mm);
