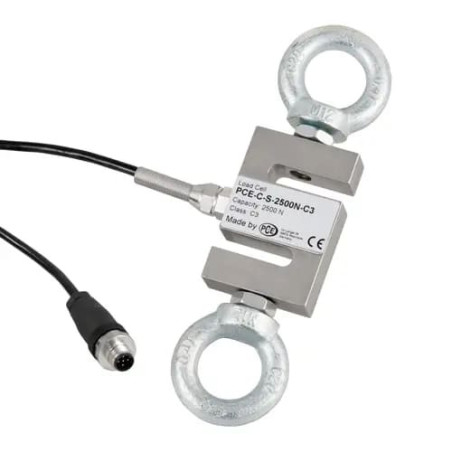

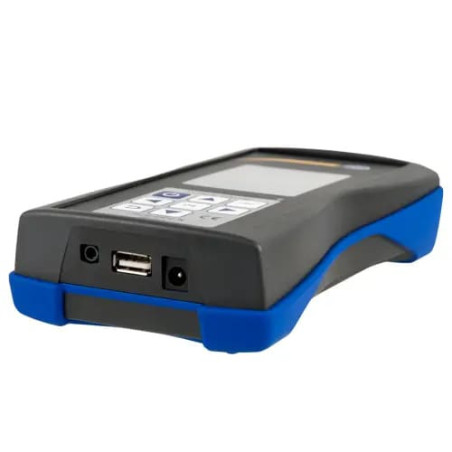

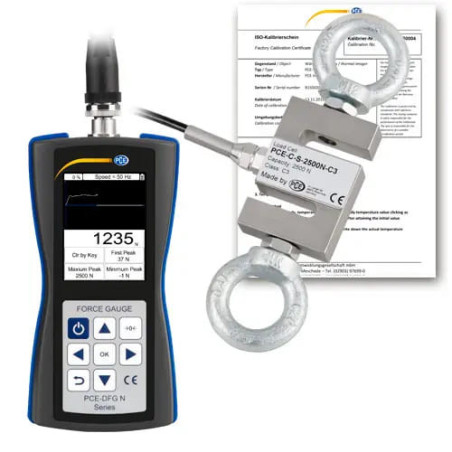

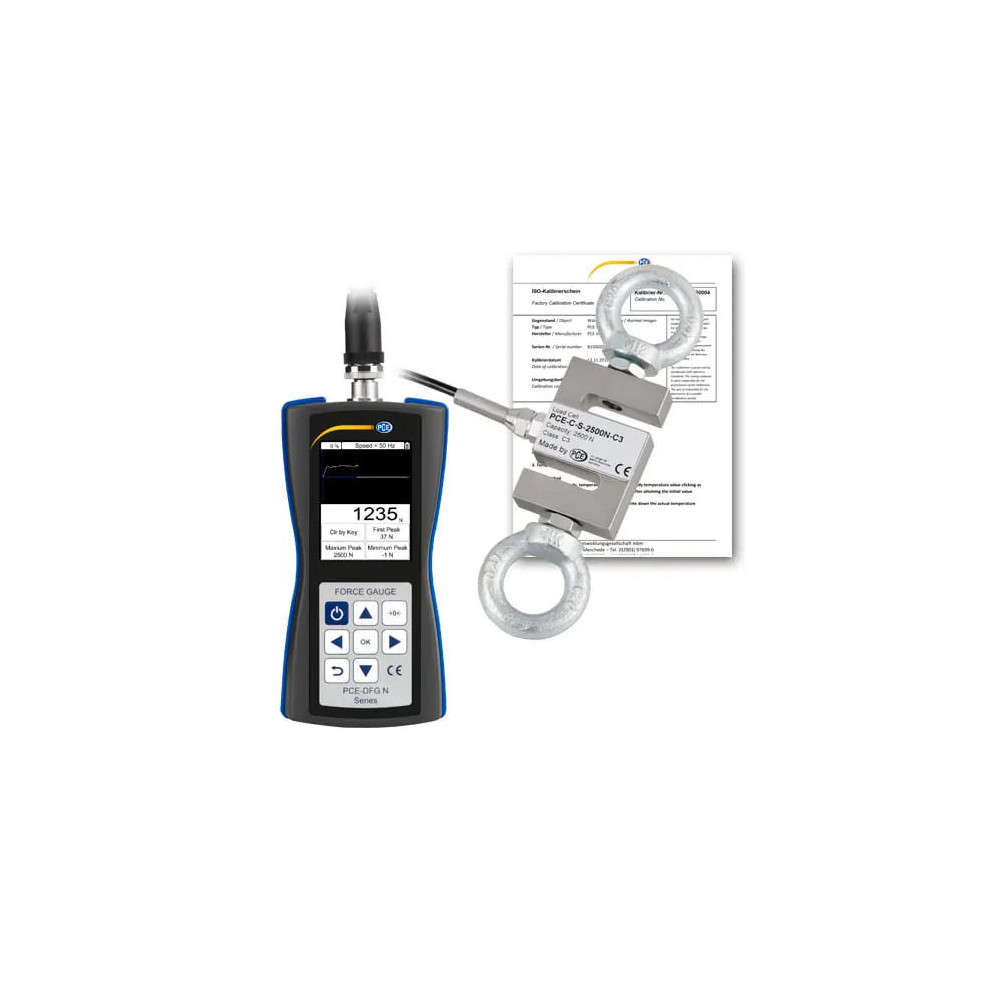

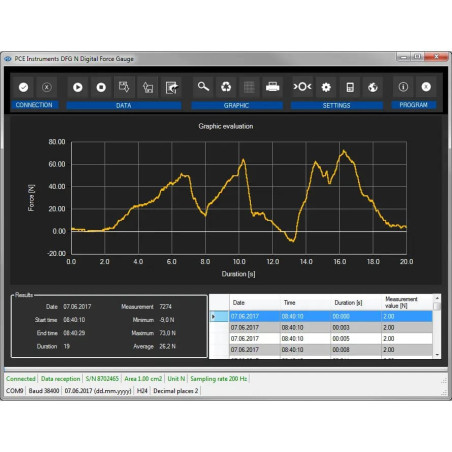

The PCE-DFG N 2.5K-ICA dynamometer is designed for high-resolution tension and compression testing. With a maximum load capacity of 2,500N, this instrument is ideal for evaluating force-distance curves, breaking force, and similar applications in laboratories and industrial environments. Equipped with an external load cell, USB interface, and included ISO certification, the PCE-DFG N 2.5K-ICA provides a comprehensive solution for your measurement needs.
Its durability in industrial environments and the ability to conduct tests outdoors make it versatile and reliable. Furthermore, its easy load cell interchangeability and memory for 100 measurement sets make it a highly customizable tool adaptable to various applications.
- Resolution
- 1 N
- Battery life
- About 10 hours
- Dimensions
- 200mm x 97mm x 42 mm
- Weight
- 540g
- Range
- 0 ... 2.500 N
- Power
- 1 x NiMh battery, 6V / 1600 mAh
12 V / 1 A - Measurements Units
- N, kg, lb, KPa
- Memory
- 100 measurement series, with 8000 values per series
- Precision
- ±0,1% F.S.
