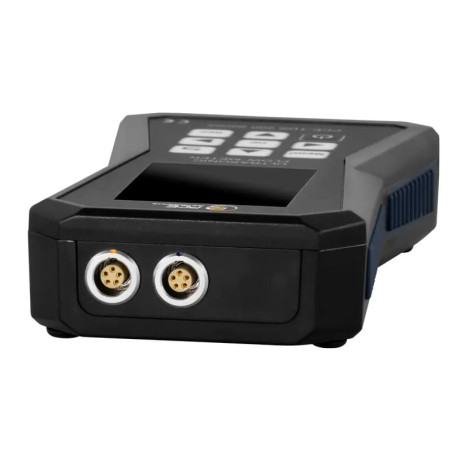

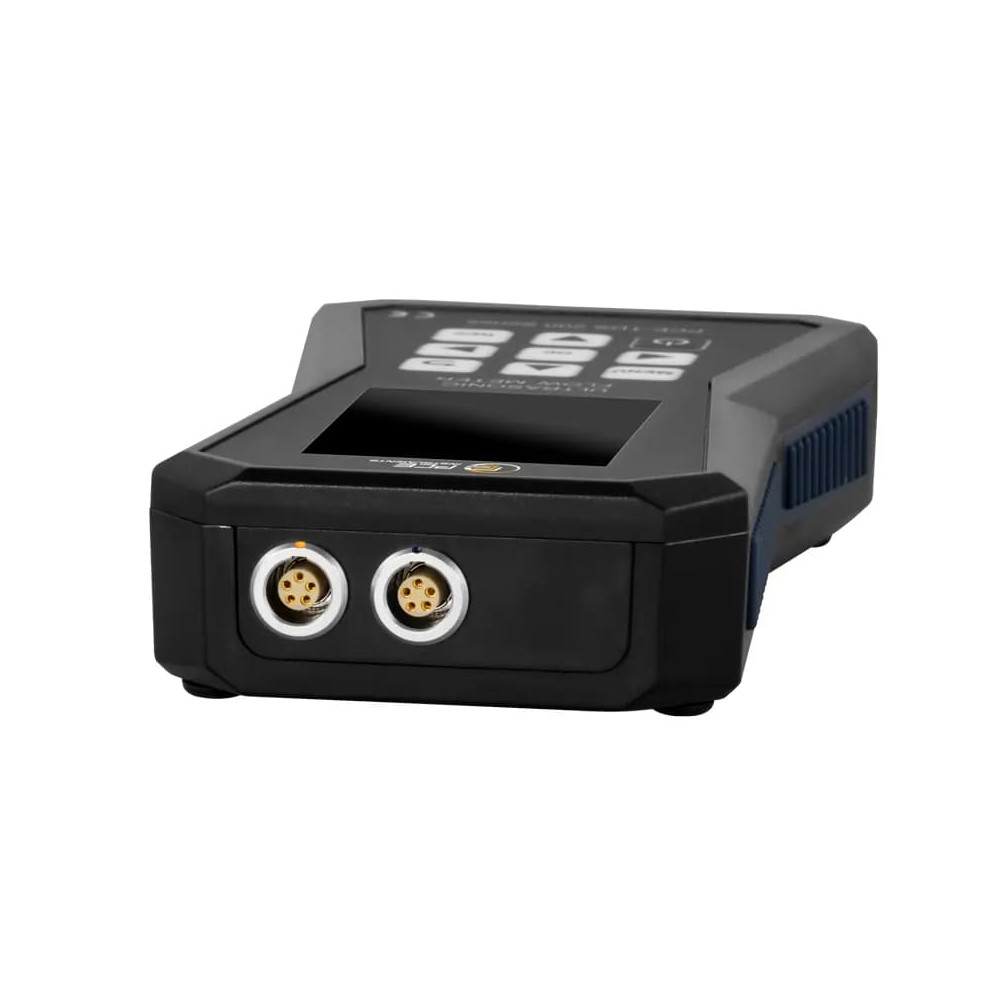

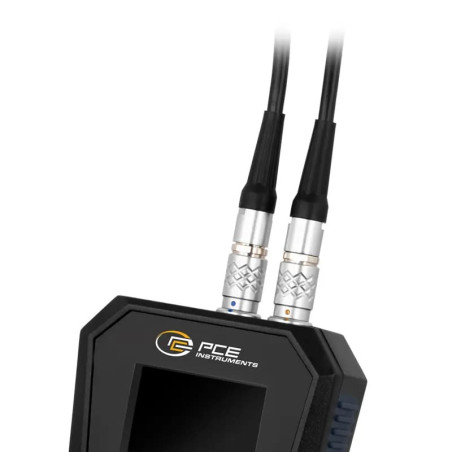

Ultrasonic flowmeter PCE-TDS 200 SL-ICA

Ultrasonic flowmeter PCE-TDS 200 SL-ICA

€2,681.00

In-stock
Description

The 32 GB Ultrasonic Flowmeter is the ideal solution for precise and versatile fluid measurement. Its wide measurement range of ±32 m/s and remarkable reproducibility of ±0.5% make it a reliable measurement instrument.

Its versatility extends to the variety of available probes, allowing adaptation to pipes of different sizes and types of substances. Moreover, it is equipped with alarm functions to ensure timely detection of anomalies in the measured data.

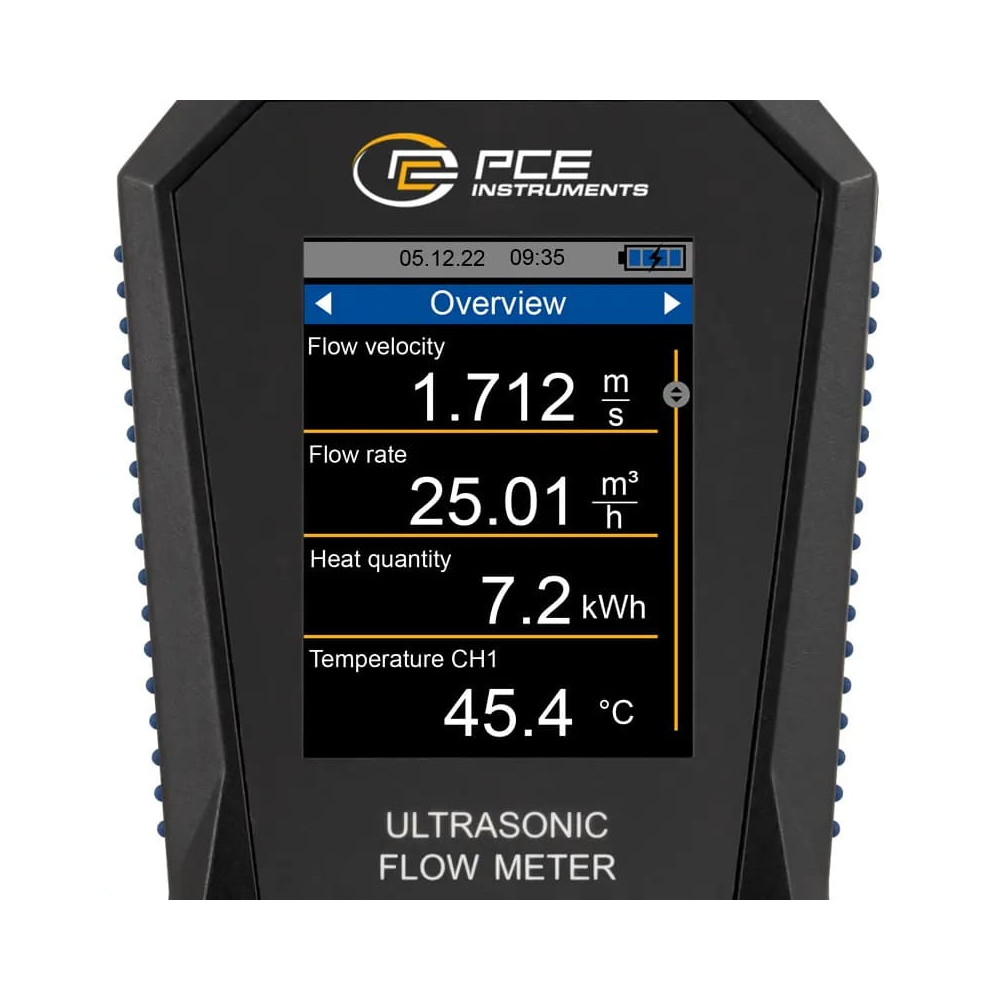

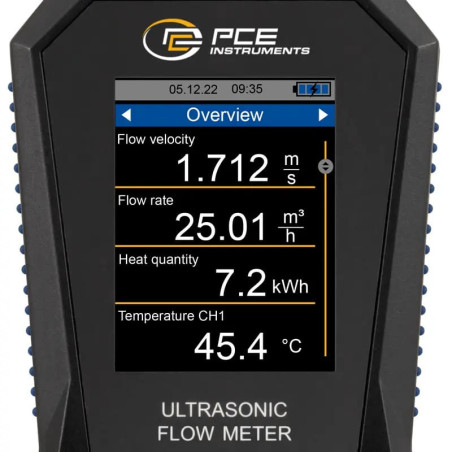

The 2.8" LCD display provides a clear and convenient display of data and information. Additionally, the device features a 32 GB internal memory for data storage during measurements, capable of holding up to 10 million data points.

Optional software is available for in-depth analysis of stored data. With this software, users can visualize graphs and tables, export data in *.csv format, and generate PDF reports for effective data management.

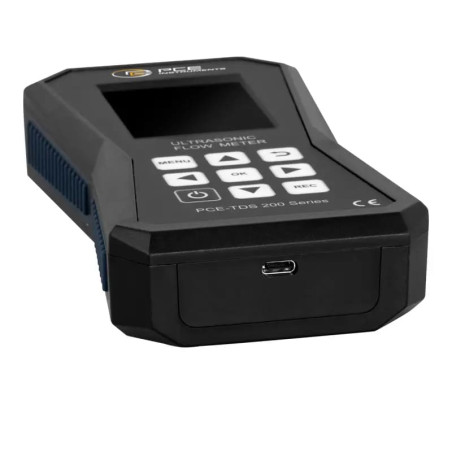

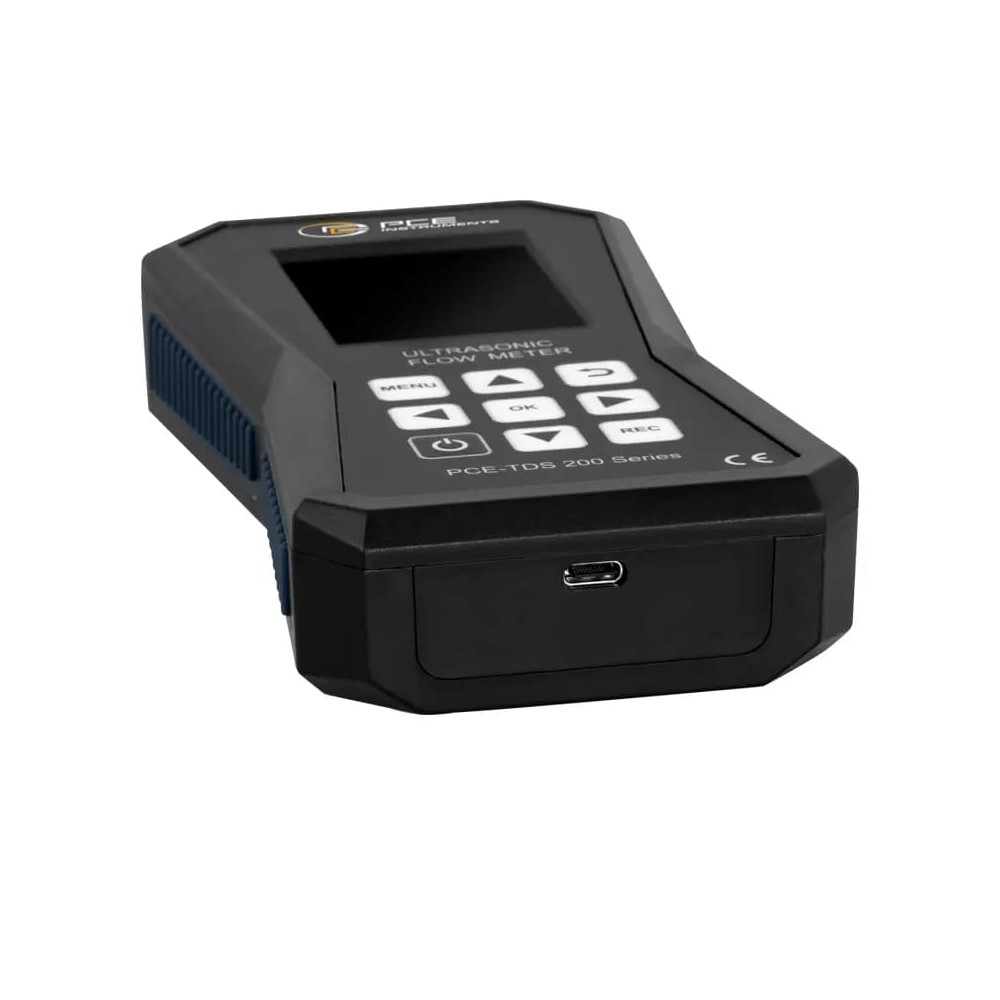

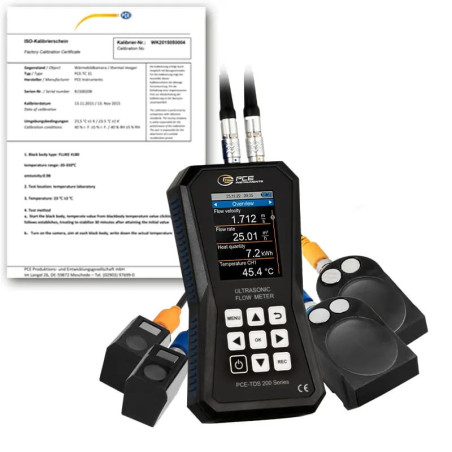

The flowmeter comes with an included ISO calibration report and a USB-C interface for quick data transfer between the device and the computer. It also offers the ability to customize alarms based on specific needs.

The Ultrasonic Flowmeter is a reliable partner for real-time monitoring of flow, flow rate, and volume in various units of measurement such as m³, l, gal, igl, mgl, cf, bal, ib, ob. With its precision, versatility, and user-friendliness, this instrument provides an excellent solution for your fluid measurement needs.

20 Items
PCE
4250348731487
Resolution
0,001 m/s
Dimensions
165mm x 85mm x 32mm
Weight
255g
Range
±32 m/s
Power
LiPo battery; 3.7V; 2500mAh
Detector

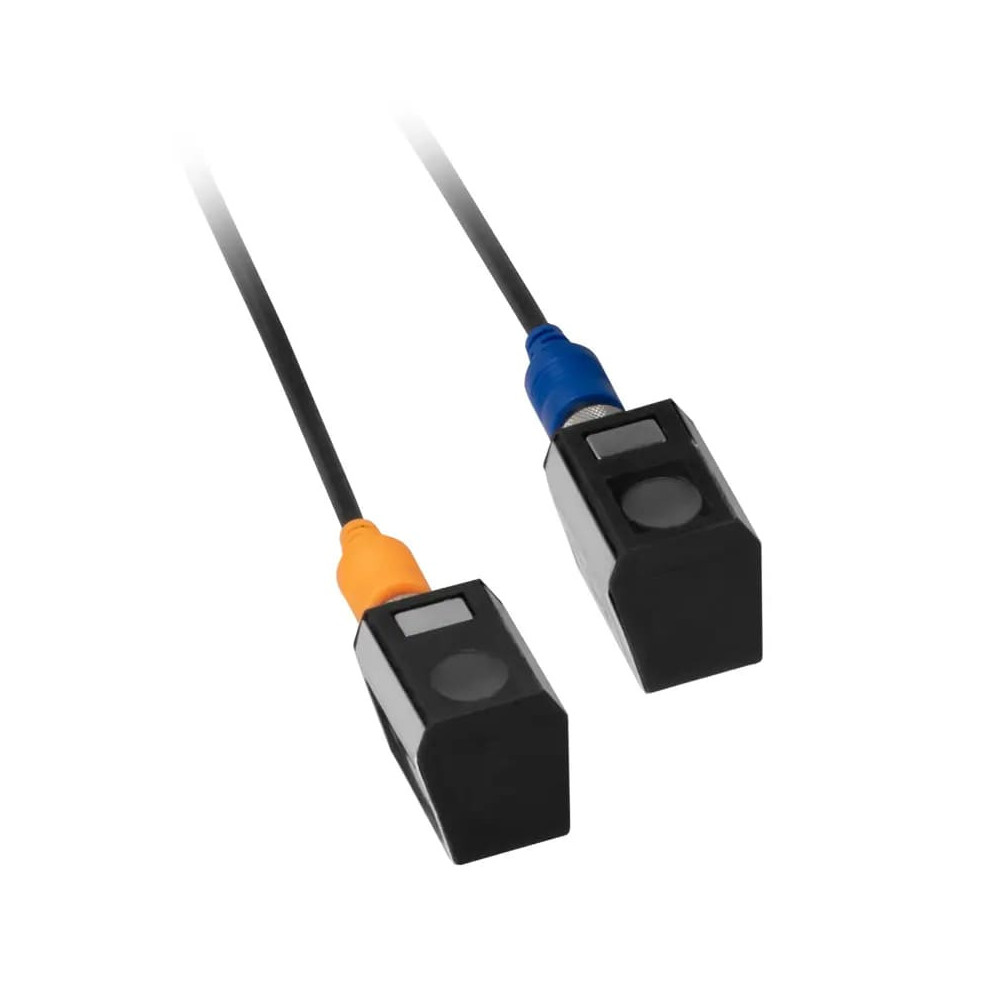

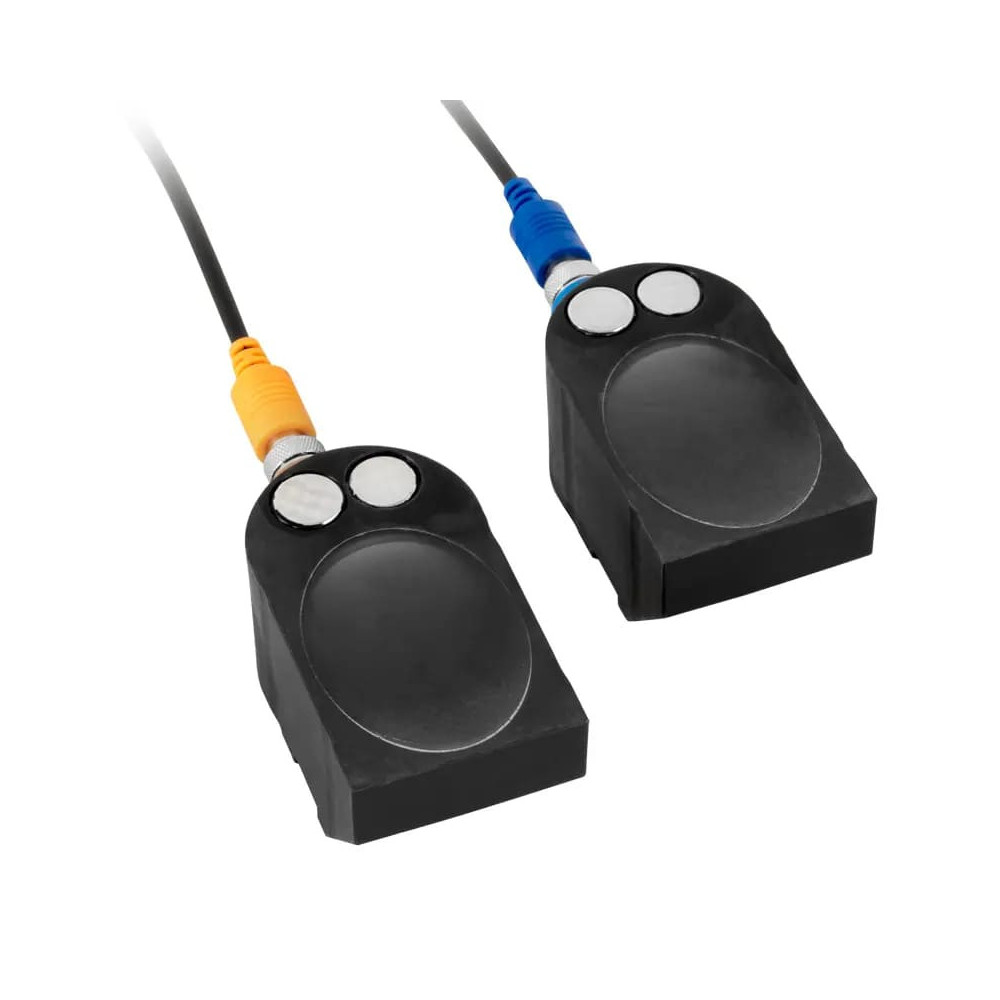

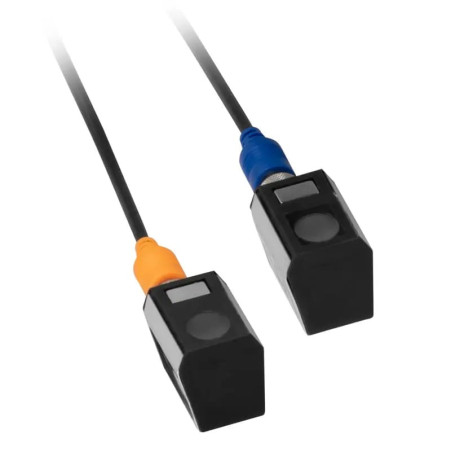

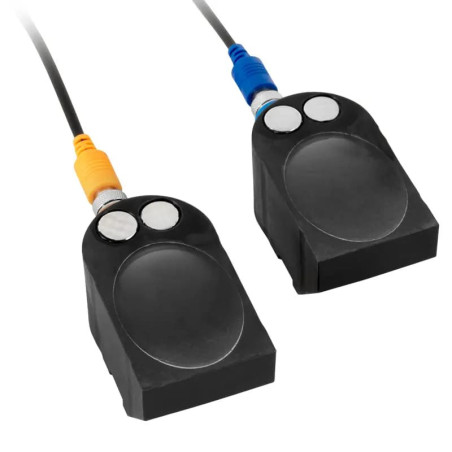

Pair of PCE-TDS 200 L SENSOR
Pair of PCE-TDS 200 S SENSOR
Measurements Units
Dimensions mm / in
Flow velocity m/s / ft/s
Timeline seconds / minutes / hours / days
Volume flow m / l / gal / igl / mgl / cf / bal / ib / ob
Volume m / l / gal / igl / mgl / cf / bal / ib / ob
Memory
32GB / 10 million values
Measurement method
Z / V / N / W
Battery autonomy
About 10 hours
Precision
DN greater than/equal to 50 mm equal to ±1.5% of the measurement value for speed greater than 0.3 m/s
DN less than 50 mm equal to ±3.5% of the measurement value for speed greater than 0.3 m/s
substances
Water; Sea water; Oil; Raw; Methanol; Ethanol; Diesel; Gas; Petrolium; Customized; Any liquid with an impurity of less than 5%
